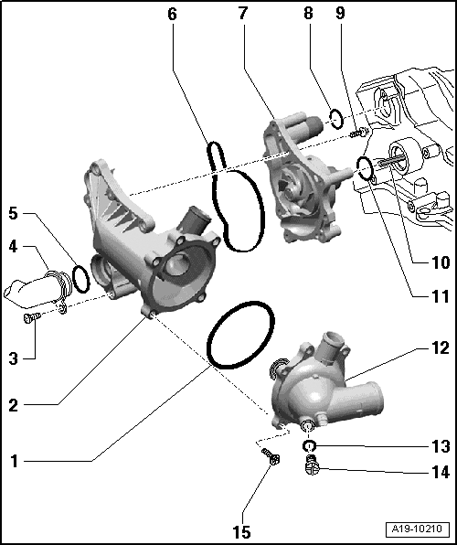

Coolant Pump and Regulator, Component Overview
1 - Seal
- Replace
2 - Coolant pump housing
- Removing and installing → Coolant Pump, Removing and Installing
3 - 8 Nm plus an additional 90 (1 /4 turn)
- Replace
4 - Front coolant line
- Removing and installing → Front Coolant Line, Removing and Installing
5 - O-ring
- Replace
6 - Seal
- Replace
7 - Coolant pump
- Removing and installing → Coolant Pump, Removing and Installing
8 - O-ring
- Replace
9 - 9 Nm
10 - Drive shaft for coolant pump
11 - O-ring
- Replace
12 - Thermostat housing
- Removing and installing → Thermostat Housing, Removing and Installing
- Coolant thermostat opening data → Thermostat Opening Data
13 - O-ring
- Replace
14 - Drain plug - 4 Nm
15 - 9 Nm
