Setting Up the Calibration Device

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

VAS6350/1- installing:
Check the dimension of the holes.
Equip the -VAS6350/1- appropriately.
To do so, secure the three wheel bolt adapters in the hole circle to each -VAS6350/1-.
Place the paddle on both -VAS6350/1- and secure them using a clamping screw.
Place the -VAS6350/1- onto the wheel bolts on the rear wheels.

The -VAS6350/1- are positioned by the "O-rings" in the adapters and secured.

Courtesy of AUDI OF AMERICA, LLC

NOTE: Attach the -VAS6350/1- onto the wheels so that any installed "anti-theft" wheel bolts are not connected to the - VAS6350/1-.

Adjust the paddles with the aid of clamping screw so that they move freely just above the floor. Check the paddles for ease of movement.
-VAS6350A- with -VAS6350A/6- orientation

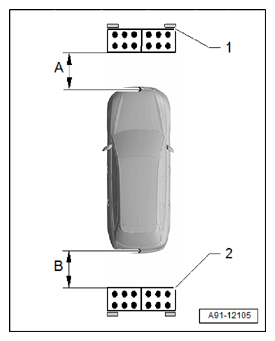

Position the -VAS6350A- with the -VAS6350A/6- -1- at a distance of between 400 mm and 600 mm -dimension A- in front of the vehicle in the center (in front of the front bumper trim).
Bring the - VAS6350A- with -VAS6350A/6- into a horizontal position.

Courtesy of AUDI OF AMERICA, LLC
To do so, twist plastic feet under the calibration field of the -VAS6350A- so that air bubble in level is located exactly in the center of the indicator -arrow-

WARNING: Make sure tight does not reflect off the -VAS6350A/6-.
Reflections affect the camera and may make it impossible to perform the calibration.

Courtesy of AUDI OF AMERICA, LLC

Attach the -VAS6350/3- -4- to the -VAS6350A/6- to the center of the location provided.
Switch on the -VAS6350/3- -4- and align the calibration field of the -VAS6350A- with -VAS6350A/6- so that the laser beam points at the front of the vehicle, in the center just above the Audi rings.
Make sure the Audi rings are exactly in the center. Correct the laser beam accordingly.
