Gearshift Rails / Shift Forks Installed Positions Inside The Transmission.

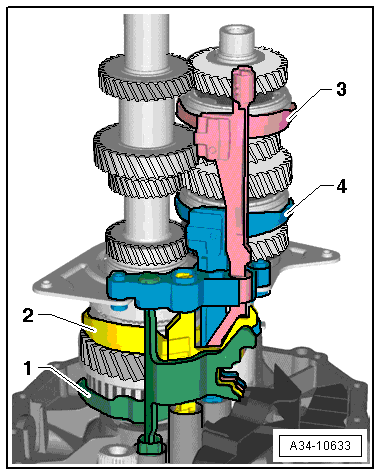

Fig 1: Identifying Earshift Rails / Shift Forks
GWWA34-10633Courtesy of AUDI OF AMERICA, LLC
  1. Gearshift rail / reverse gear shift fork
  2. Gearshift rail / shift fork for 1st and 2nd gear
  3. Gearshift rail / shift fork for 3rd and 4th gear
  4. Gearshift rail / shift fork for 5th and 6th gear
