Reverse Drive Gear Assembly Overview

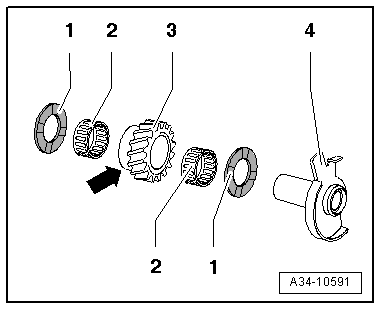

Fig 1: Identifying Reverse Drive Gear Assembly
GWWA34-10591Courtesy of AUDI OF AMERICA, LLC
  1. Thrust washer
  2. Needle bearing
  3. Reverse drive gear
    NOTE: Installed position: The shoulder -arrow- faces the transmission housing.
  4. Reverse shaft support
