Head lamp Range Control Module Connector End View (J431, T26)

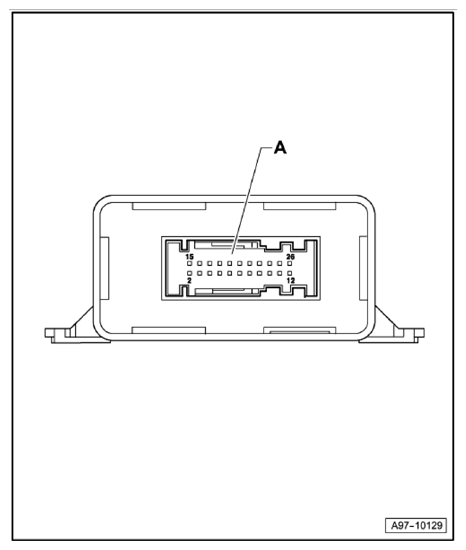

Fig 1: Head lamp Range Control Module Connector End View (J431, T26)
Courtesy of AUDI OF AMERICA, LLC
A
26-Pin Connector, black -T26-
