Tire Pressure Monitoring Control Module Connector End View (J502, T32e)

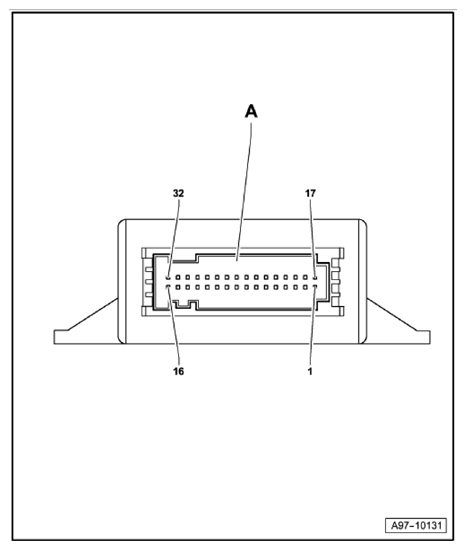

Fig 1: Tire Pressure Monitoring Control Module Connector End View (J502, T32e)
Courtesy of AUDI OF AMERICA, LLC
A
32-Pin Connector, white -T32e-
