Vehicle Electrical System Control Module 2 Connector End View (J520, T40)

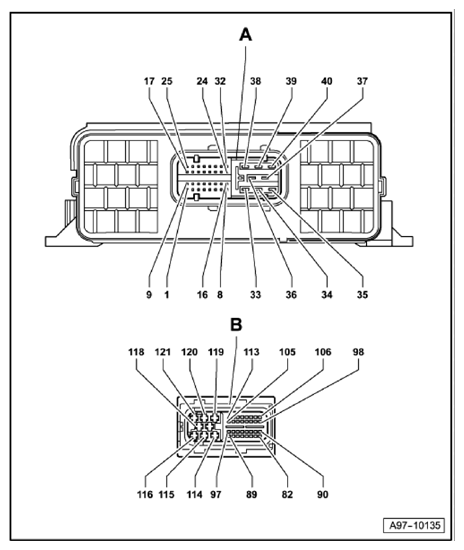

Fig 1: Vehicle Electrical System Control Module 2 Connector End View (J520, T40)
Courtesy of AUDI OF AMERICA, LLC
A
Vehicle Electrical System Control Module 2 -J520- Connector
B
40-Pin Connector, black -T40-
