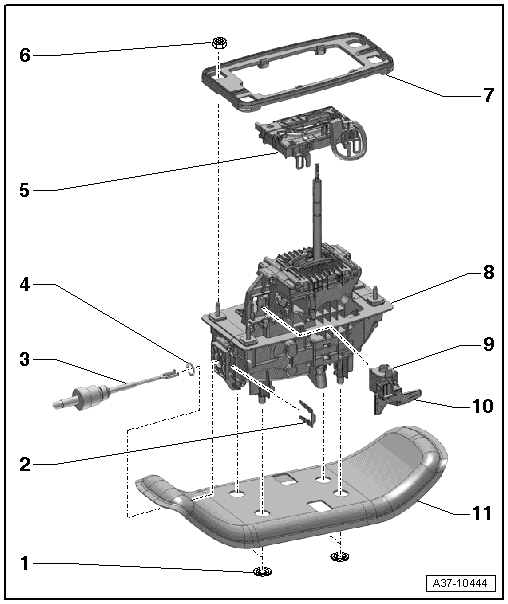

Overview - Selector Mechanism Function Unit
NOTE:
Lubricate bearing areas and slide surfaces with Polycarbamide GreaseG 052 142 A2.
- Lock Washer
- For noise insulation to the selector mechanism function unit.
- Quantity: 4
- Replace
- Clip
- For the selector lever cable on the selector mechanism function unit
- O-Ring
- Replace
- Selector Lever Cable
- Do not bend
- Removing and installing, refer to SELECTOR LEVER CABLE .
- The selector lever cable must be replaced if the rubber grommet is damaged.
- Make sure the rubber grommet on the transmission side is not twisted when installing.
- Adjusting, refer to SELECTOR LEVER CABLE, ADJUSTING .
- Selector Lever Sensor System Control Module -J587- with Tiptronic Switch -F189-
- Removing and installing, refer to Selector Lever Sensor System Control Module -J587- WITH Tiptronic Switch -F189- .
- Nut
- 8 Nm
- For selector mechanism to body
- Seal
- Selector Mechanism Function Unit
- Can only be replaced as a unit
- Removing and installing, refer to SELECTOR MECHANISM FUNCTION UNIT .
- Shift Lock Solenoid -N110-
- Removing and installing, refer to Shift Lock Solenoid -N110- .
- Transmission Park Selector Switch -F305-
- Can only be replaced together with the Shift Lock Solenoid -N110-, refer to Shift Lock Solenoid -N110- .
- Noise Insulation
