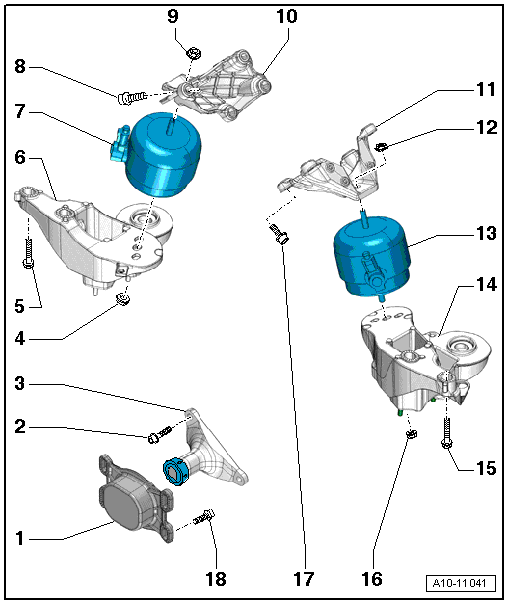

SUBFRAME Mount Overview
WARNING: This page is about a different variant/trim than selected.
- Torque Support Stop
- Must contact torque support buffer at top and bottom without play
- Bolt
- 40 Nm
- Torque Bracket
- Removing and installing, refer to TORQUE SUPPORT
- Nut
- 40 Nm
- Bolt
- 75 Nm
- Right Engine Mount Bracket
- Removing and installing, refer to RIGHT ENGINE MOUNT
- Engine Mount, Right
- Removing and installing, refer to RIGHT ENGINE MOUNT
- Bolt
- 40 Nm
- Nut
- 40 Nm
- Right Engine Support
- Removing and installing, refer to RIGHT ENGINE MOUNT
- Left Engine Support
- Removing and installing, refer to LEFT ENGINE MOUNT
- Nut
- 40 Nm
- Engine Mount, Left
- Removing and installing, refer to LEFT ENGINE MOUNT
- Left Engine Mount Bracket
- Removing and installing, refer to LEFT ENGINE MOUNT
- Bolt
- 75 Nm
- Nut
- 40 Nm
- Bolt
- 40 Nm
- Bolt
- 40 Nm
