Engine, Securing To Engine And Transmission Holder
Special tools and workshop equipment required
- Engine Sling 2024A
- Engine And Transmission Holder VAS6095 with Engine/Transmission Holder - Universal Mounting VAS6095/1 and Engine/Transmission Holder - V6 FSI Bracket VAS6095/1-5
- Shop Crane VAS6100
- Lift Arm Extension VAS6101
Securing
Risk of accident!
- The engine may be transported only in the manner described and without the transmission.
- Engine separated from transmission. Refer to ENGINE AND AUTOMATIC TRANSMISSION, SEPARATING .

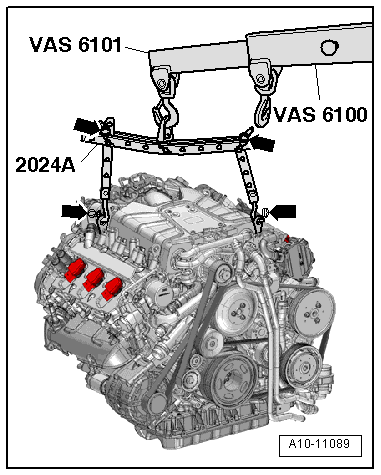

-- Attach the Engine Sling 2024A to the engine and to the Shop Crane VAS6100 using the Lift Arm Extension VAS6101 as illustrated.
To be aligned to the center of gravity of the engine assembly, the hole rails of the lifting hook must be inserted as shown in the illustration.
Risk of accident due to loose engine sling components.
- Use securing pins -arrows- to secure the lifting hooks and alignment pins.
-- Remove the bolts -arrows- and the left engine support.
The illustration shows the installation location without the engine bearing bracket.
Ignore -1-.
-- Disconnect the electrical connector -1- on the Right Electronhydraulic Engine Mount Solenoid Valve -N145-.
-- Free up the electrical wire on the engine bearing bracket
-- Remove the bolts -arrows- and the right engine support.
The illustration shows the installation location without the engine bearing bracket
-- Secure the engine to the Engine/Transmission Holder - Universal Mounting VAS6095/1 and Engine/Transmission Holder - V6 FSI Bracket VAS6095/1-5 on the Engine And Transmission Holder VAS6095 to 40 Nm, as illustrated.
