Level Control System Control Module Connector End View (J197, T9, T18, T15a, T12k, T6m)

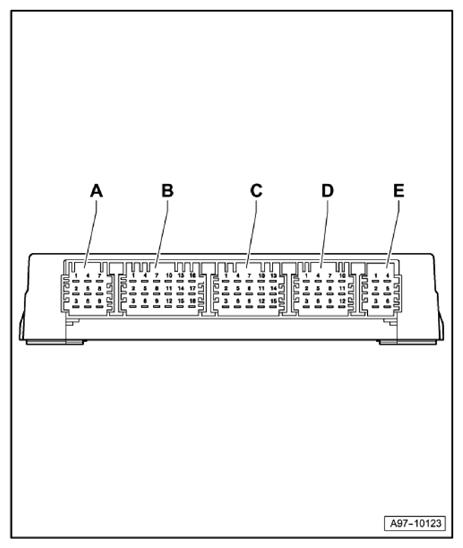

Fig 1: Level Control System Control Module Connector End View (J197, T9, T18, T15a, T12k, T6m)
G10359751Courtesy of AUDI OF AMERICA, LLC
A 9-Pin Connector, grey -T9-
B 18-Pin Connector, grey -T18-
C 15-Pin Connector, purple -T15a-
D 12-Pin Connector, green -T12k-
E 6-Pin Connector, blue -T6m-
