External Audio Source Connection -R199- CONNECTOR ASSIGNMENT, AMI, CAN

NOTE:

Unlisted connector terminals are not assigned.

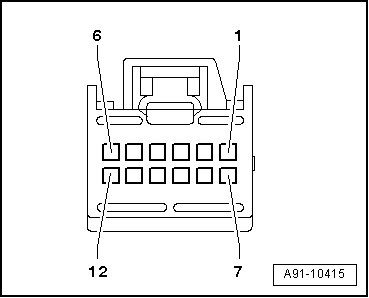

Fig 1: 12-Pin Connector (T12t)

Courtesy of AUDI OF AMERICA, LLC

1. Terminal 31
2. CAN Bus low (Infotainment)
3. Not Assigned
4. LF right to the Radio -R-
5. Not Assigned
6. Not Assigned
7. Terminal 30
8. CAN Bus high (Infotainment)
9. LF left to the Radio -R-
10. LF ground to the Radio -R-
