Comfort System Central Control Module -J393-, REMOVING AND INSTALLING

-- Open the right luggage compartment side trim panel.

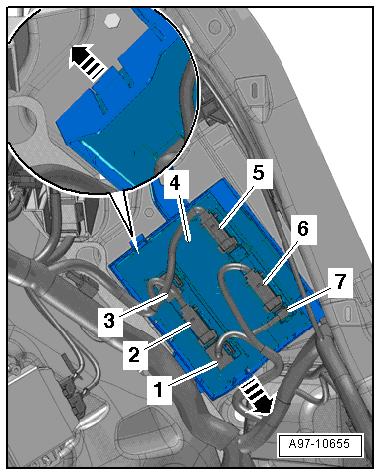

Fig 1: Identifying System Central Control Module, Removal/Installation

Courtesy of AUDI OF AMERICA, LLC

-- Open the clips -arrows- and remove the Comfort System Central Control Module -J393- -4- from the retainer.

-- Carefully disconnect the connectors -1- and -3- and the connector for the antenna -7-.

-- Disconnect the connectors - 2, 5 and 6-.

-- To disconnect the connector, press the retainer -1-, turn the bracket in direction of -arrow- and disconnect the connector.

Fig 2: Catch And Retainer

Courtesy of AUDI OF AMERICA, LLC

-- Remove the Comfort System Central Control Module -J393-.
