Overview - Rear Control Module

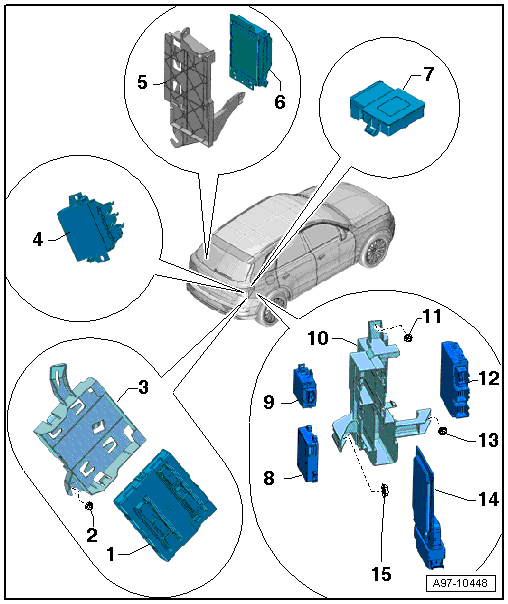

Fig 1: Overview Of Luggage Compartment Relay, Fuse Carrier And Control Modules

Courtesy of AUDI OF AMERICA, LLC

Comfort System Central Control Module -J393-
- Removing and installing, refer to Comfort System Central Control Module -J393-, REMOVING AND INSTALLING
Nut
- 3 Nm
Frame
- For Comfort System Central Control Module -J393-
Parking Aid Control Module -J446-
- Overview, refer to OVERVIEW - PARKING AID .
Frame
- For the control modules
Special Purpose Vehicle Control Module -J608-
- In the luggage compartment on the left side
- Removing and installing, refer to Special Purpose Vehicle Control Module -J608-, REMOVING AND INSTALLING
Electromechanical Parking Brake Control Module -J540-
- Removing and installing, refer to OVERVIEW - BATTERY COOLING MODULE .
Cellular Telephone Amplifier -R86-
- Removing and installing, refer to Cellular Telephone Amplifier -R86-, REMOVING AND INSTALLING .
Parking Heater Radio Receiver -R64-
- Removing and installing, refer to Parking Heater Radio Receiver -R64-, REMOVING AND INSTALLING
Frame
- For the control modules
Nut
- 3 Nm
Towing Recognition Control Module -J345-
- Removing and installing, refer to Towing Recognition Control Module -J345-, REMOVING AND INSTALLING
Nut
- 3 Nm
Electronic Damping Control Module -J250-
- Removing and installing, refer to ELECTRONIC DAMPING CONTROL MODULE .
Nut
- 3 Nm
