Chip Card Reader Control Module -J676-, CONNECTOR ASSIGNMENT

Chip Card Reader Control Module -J676-

NOTE:

Unlisted connector terminals are not assigned.

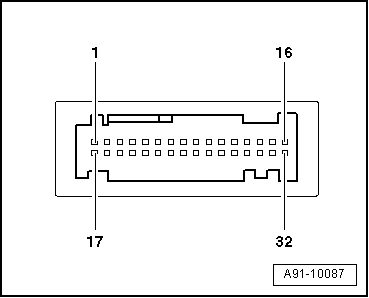

Fig 1: Multipin connector, 32-pin black

Courtesy of AUDI OF AMERICA, LLC

1-16 -

to the Traffic Data Antenna -R173-

17 -

VICS data wire to the Information Electronics Control Module 1 -J794-

19 -

VICS data wire to the Information Electronics Control Module 1 -J794-

21 -

Switch-on signal to the Information Electronics Control Module 1 -J794-

22 -

Terminal 30

23 -

ETC data to the Information Electronics Control Module 1 -J794-

25 -

ETC data from the Information Electronics Control Module 1 -J794-

28 -

Terminal 31
