Throttle Position (TP) Sensor G79/Accelerator Pedal Position Sensor 2 G185 , checking

Special tools, testers and auxiliary items required

• Multimeter.
• Wiring diagram

Test requirement

• The Motronic Engine Control Module (ECM) J623 fuses OK.
• Battery voltage at least 12.5 volts.
• All electrical consumers such as, lights and rear window defroster, switched off.
• Vehicles with automatic transmission, shift selector lever into position "P" or "N".

• A/C switched off.
• Ground (GND) connections between engine/transmission/chassis OK.

Test sequence

• Remove the drivers side storage compartment. Refer to →
  • 68 - INTERIOR EQUIPMENT
  • 68 - INTERIOR EQUIPMENT for BODY INTERIOR - CABRIOLET
  .

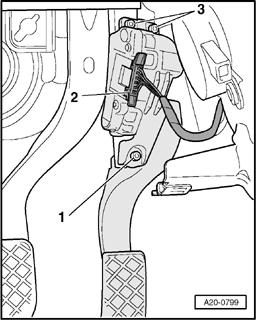

• Disconnect the Throttle Position (TP) Sensor G79/Accelerator Pedal Position Sensor 2 G185 6-pin electrical harness connector - 2  -.

Checking voltage supply and wiring

• Switch the ignition on.

• Using a Multimeter , check the following wiring connections for voltage.

Throttle Position (TP) Sensor G79/Accelerator Pedal Position Sensor 2 G185 electrical harness connector terminal	Specified value
1 to Ground (GND)	about 5 V
1 to 5	about 5 V
2 to Ground (GND)	about 5 V
2 to 3	about 5 V

• Switch the ignition off.

If the specification is not obtained:

If the manufacturers test box is being used. Perform the following step.

• Install the test box. Refer to → 24 MULTIPORT FUEL INJECTION (MFI) .
• Using a Multimeter , check the Throttle Position (TP) Sensor G79/Accelerator Pedal Position Sensor 2 G185 6-pin electrical harness connector terminals to the Motronic Engine Control Module (ECM) J623 electrical connector T121 for an open circuit according to wiring diagram.

Throttle Position (TP) Sensor G79/Accelerator Pedal Position Sensor 2 G185 electrical harness connector terminals	Motronic Engine Control Module (ECM) J623 electrical connector T121 terminals or test box socket
1	72
2	73
3	36
4	35
5	33
6	34

Specified value: 1.5 Ω max.

If the specification is not obtained:

• Check the wiring for a short circuit to each other, Battery (+), and Ground (GND).
• Check the electrical harness connector for damage, corrosion, lose or broken terminals.
• If necessary, repair the faulty wiring connection.

If no malfunction is detected in the wiring and the voltage supply was OK:

• Replace the Throttle Position (TP) Sensor G79/Accelerator Pedal Position Sensor 2 G185. → 20 - FUEL SUPPLY SYSTEM .

If no malfunction is detected in the wiring and if the voltage supply was not OK:

• Replace the Motronic Engine Control Module (ECM) J623.
• Install the drivers side storage compartment. Refer to →
  • 68 - INTERIOR EQUIPMENT
  • 68 - INTERIOR EQUIPMENT for BODY INTERIOR - CABRIOLET
  .

Final procedures

After repair work, the following work steps must be performed in the following sequence:

1. Check the DTC memory.
2. If necessary, erase the DTC memory. Refer to Diagnostic Mode 04: Reset/delete diagnostic data .
3. If the DTC memory was erased, generate readiness code. Refer to Readiness Code Description .

• End of diagnosis.
