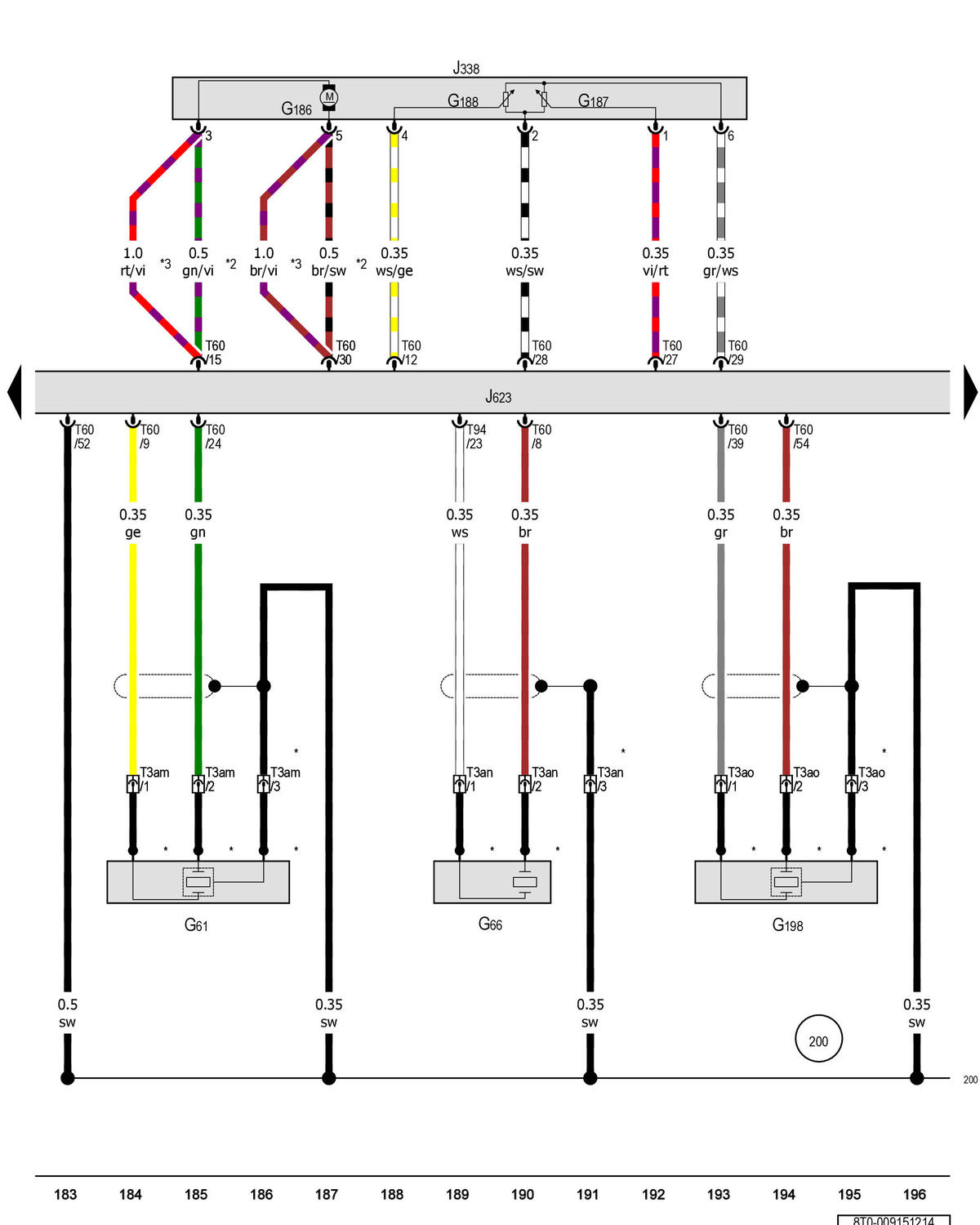

Knock Sensor 1, Knock Sensor 2, Knock Sensor 3, Throttle Valve Control Module, Engine Control Module: Notes

GWW8T0-009151214Courtesy of AUDI OF AMERICA, LLC
