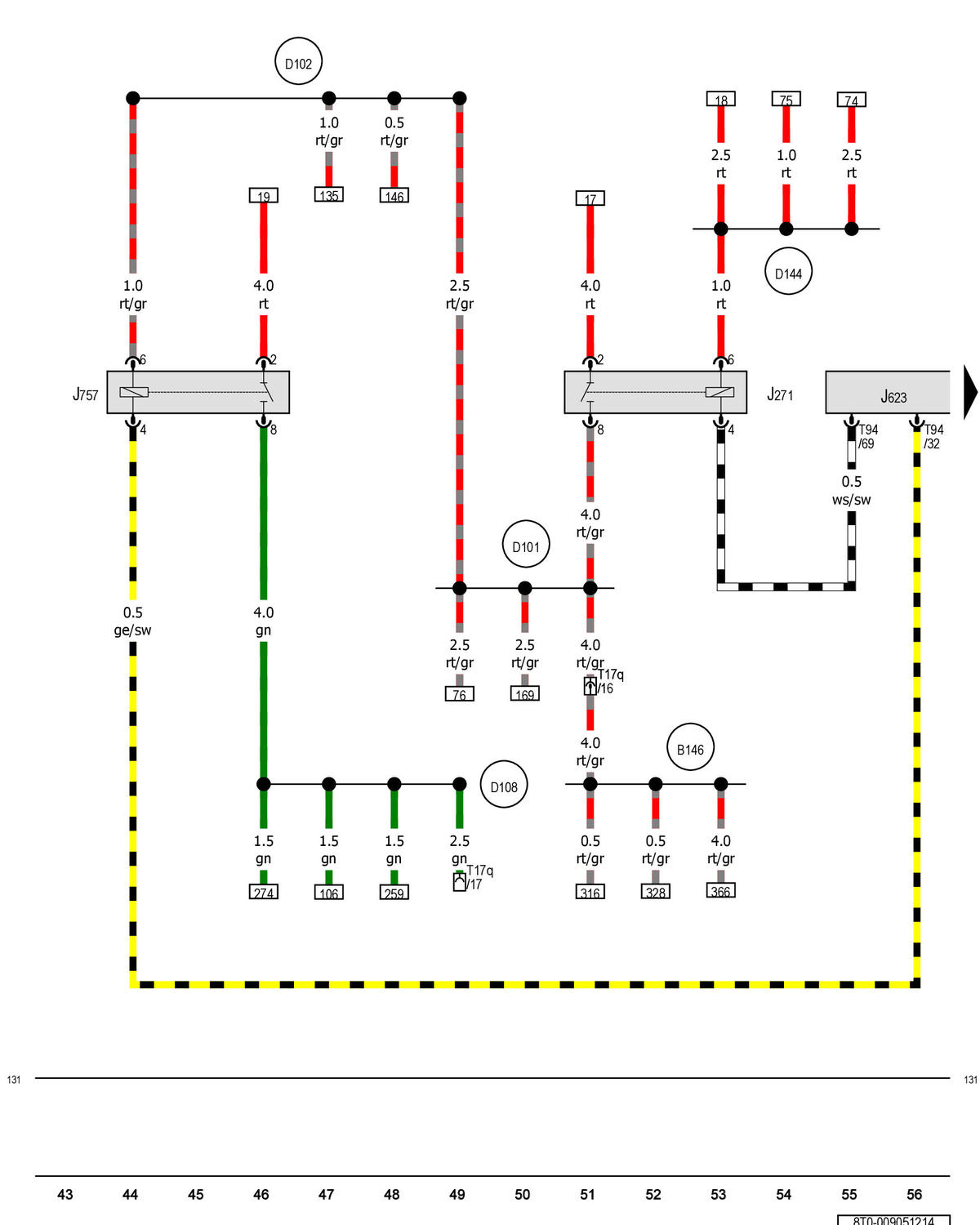

MOTRONIC Engine Control Module Power Supply Relay, Engine Control Module, Engine Component Power Supply Relay: Notes

GWW8T0-009051214Courtesy of AUDI OF AMERICA, LLC
