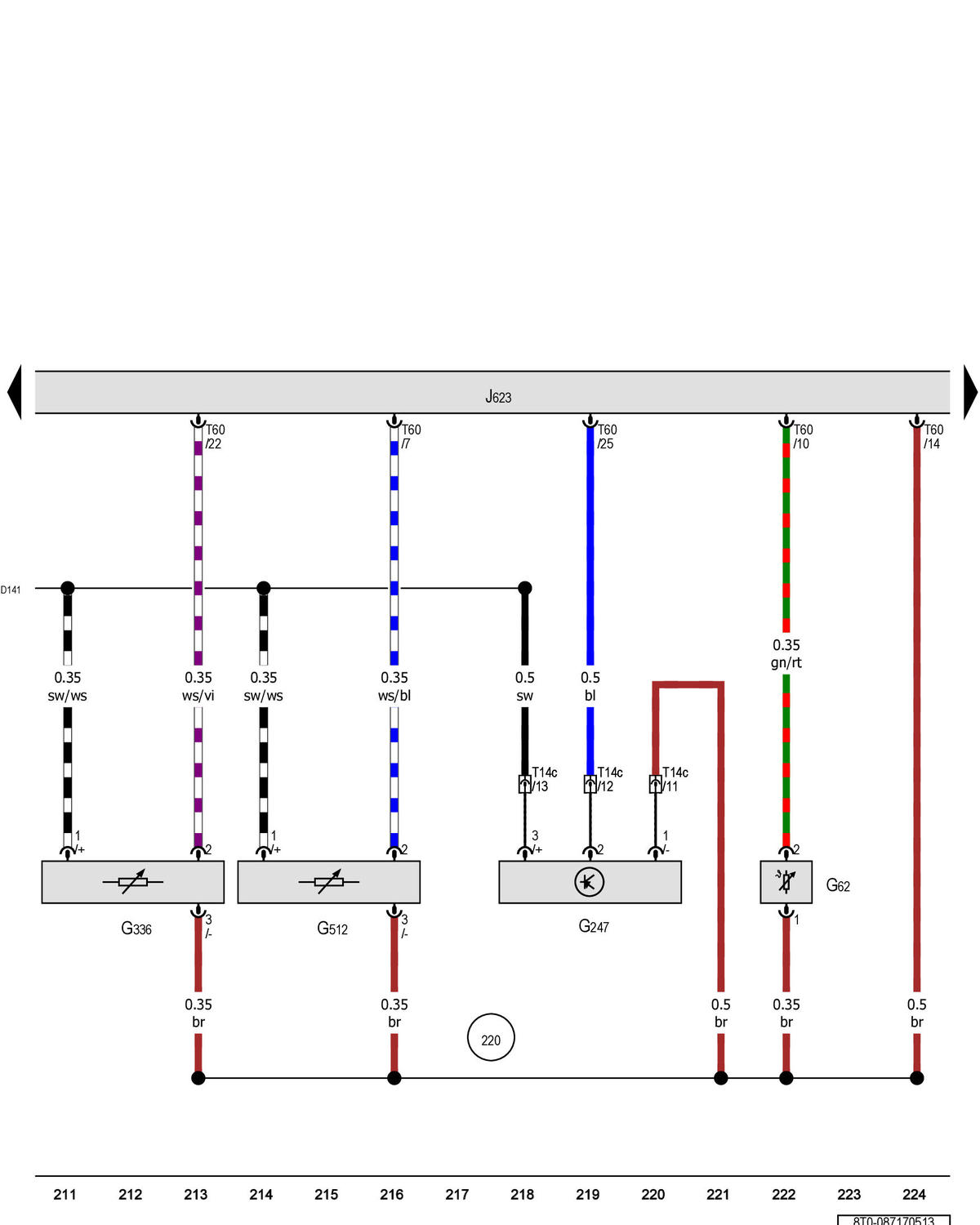

Engine Coolant Temperature Sensor, Fuel Pressure Sensor, Intake Manifold Runner Position Sensor, Intake Manifold Runner Position Sensor 2, Engine Control Module

Courtesy of AUDI OF AMERICA, LLC

G62

Engine coolant temperature sensor Type:BT, Slpdok:, Aim:BTG62

G247

Fuel pressure sensor Type:BT, Slpdok:, Aim:BTG247

G336

Intake manifold runner position sensor Type:BT, Slpdok:, Aim:BTG336

G512

Intake manifold runner position sensor 2 Type:BT, Slpdok:, Aim:BTG512

J623

Engine control module Type:BT, Slpdok:, Aim:BTJ623 Type:BT, Slpdok:, Aim:BTJ623

T14c

14-pin connector, in the engine compartment

T60

60-pin connector Type:BT, Slpdok:, Aim:BTT60

220  - Sensor ground connection (in engine wiring harness)

D141  - Connection 5V (in engine pre-wiring harness)
