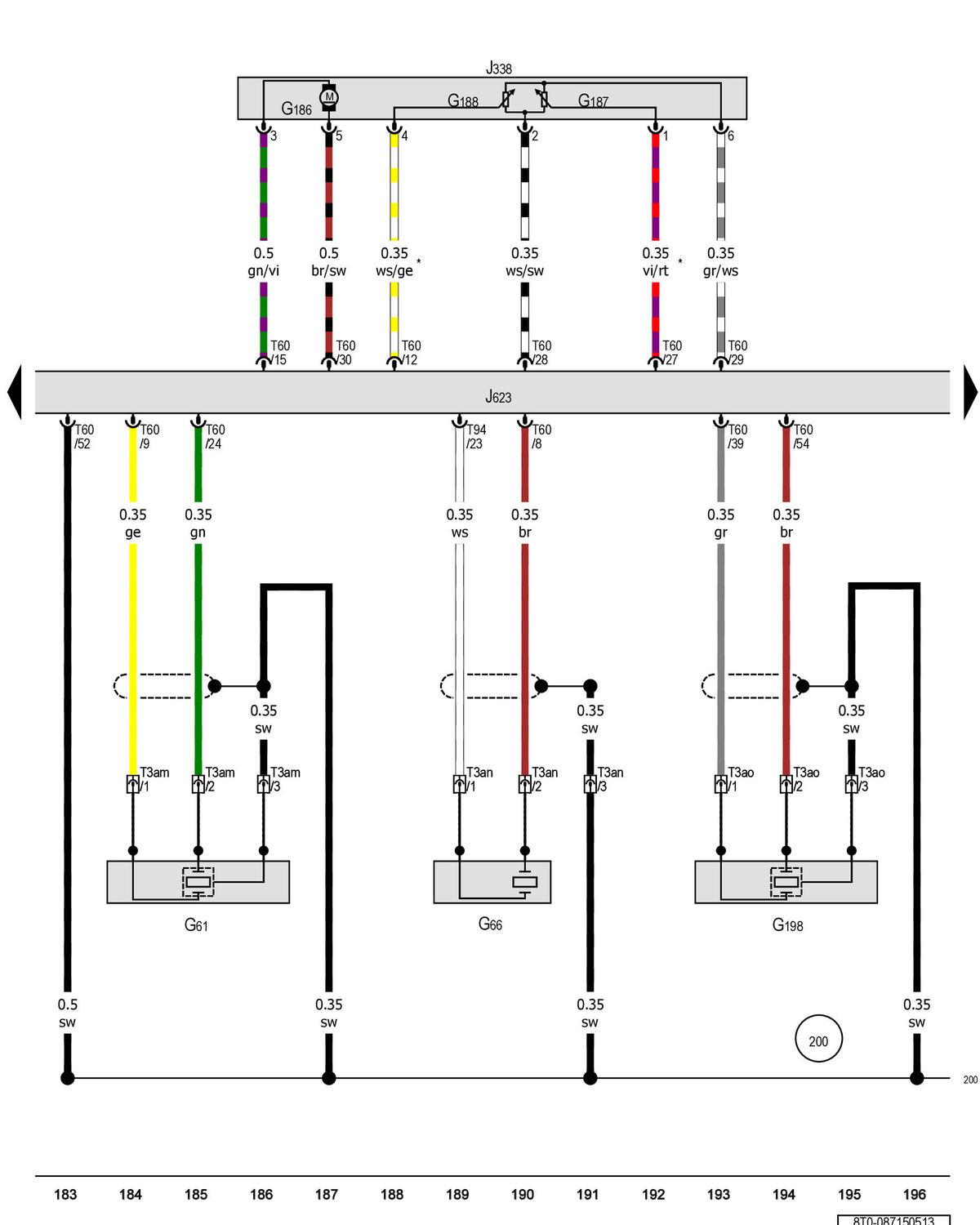

Knock Sensor 1, Knock Sensor 2, Knock Sensor 3, Throttle Valve Control Module, Engine Control Module

Courtesy of AUDI OF AMERICA, LLC

G61

Knock sensor 1 Type:BT, Slpdok:, Aim:BTG61

G66

Knock sensor 2 Type:BT, Slpdok:, Aim:BTG66

G186

EPC throttle drive

G187

EPC throttle drive angle sensor 1

G188

EPC throttle drive angle sensor 2

G198

Knock sensor 3 Type:BT, Slpdok:, Aim:BTG198

J338

Throttle valve control module Type:BT, Slpdok:, Aim:BTJ338

J623

Engine control module Type:BT, Slpdok:, Aim:BTJ623 Type:BT, Slpdok:, Aim:BTJ623

T3am

3-pin connector, black

T3an

3-pin connector, brown

T3ao

3-pin connector, black

T60

60-pin connector Type:BT, Slpdok:, Aim:BTT60

T94

94-pin connector Type:BT, Slpdok:, Aim:BTT94

200  - Ground connection shielding (in engine compartment wiring harness)

* The Color Of The Wires Depends On Vehicle Equipment
