MOTRONIC Engine Control Module Power Supply Relay, Engine Control Module, Engine Component Power Supply Relay

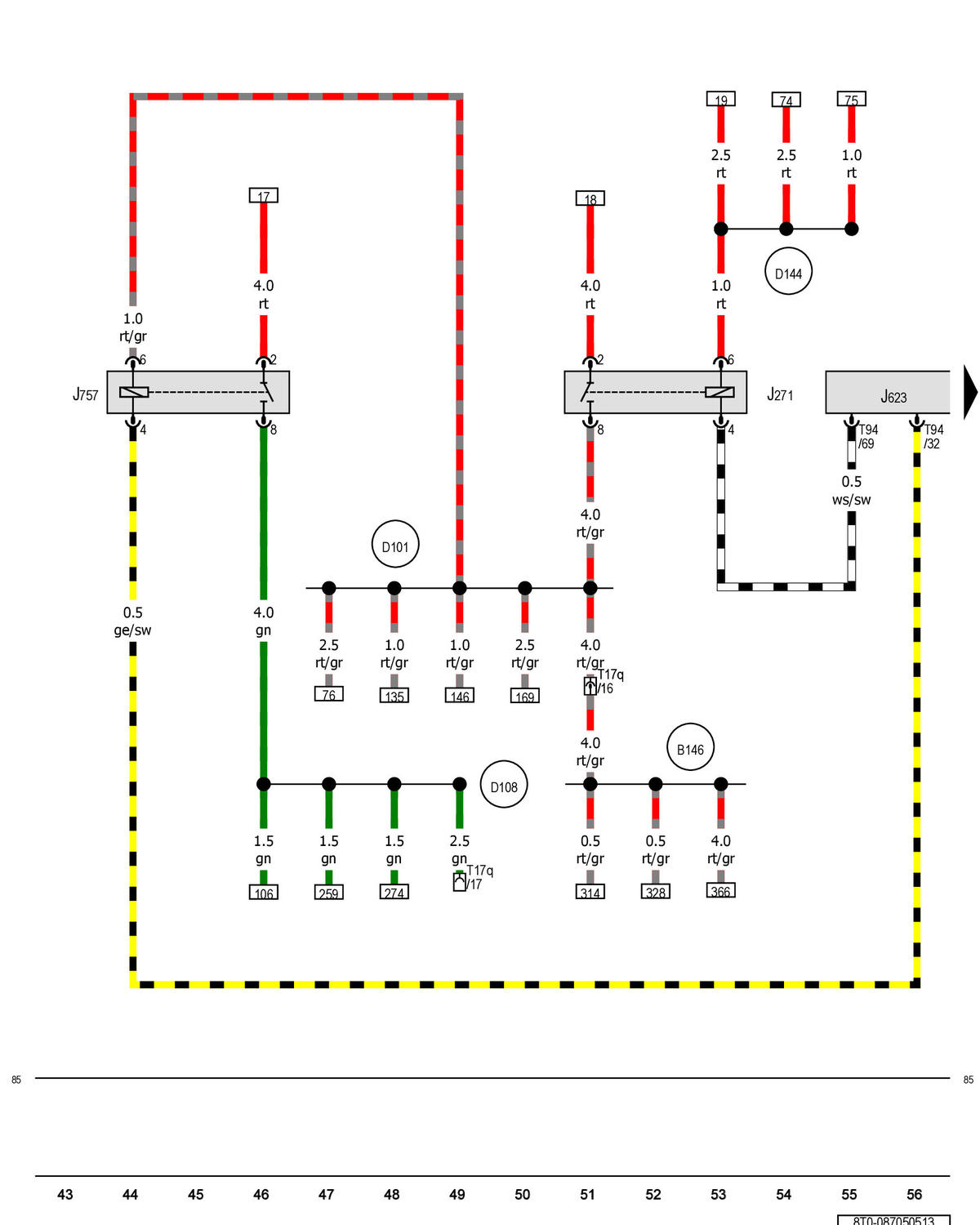

GWW8T0-087050513Courtesy of AUDI OF AMERICA, LLC

J271

Motronic engine control module power supply relay Type:BT, Slpdok:, Aim:BTJ271

J623

Engine control module Type:BT, Slpdok:, Aim:BTJ623 Type:BT, Slpdok:, Aim:BTJ623

J757

Engine component power supply relay Type:BT, Slpdok:, Aim:BTJ757

T17q

17-pin connector, red Type:BT, Slpdok:, Aim:BTT17q

T94

94-pin connector Type:BT, Slpdok:, Aim:BTT94

85  - Ground connection 1 (in engine compartment wiring harness)

B146  - Positive connection 1 (87) (in interior wiring harness)

D101  - Connection 1 (in engine compartment wiring harness)

D108  - Connection 6 (in engine compartment wiring harness)

D144  - Positive connection 5 (30) (in engine compartment wiring harness)
