Component Location Overview - Navigation System, Through 10/27/2008

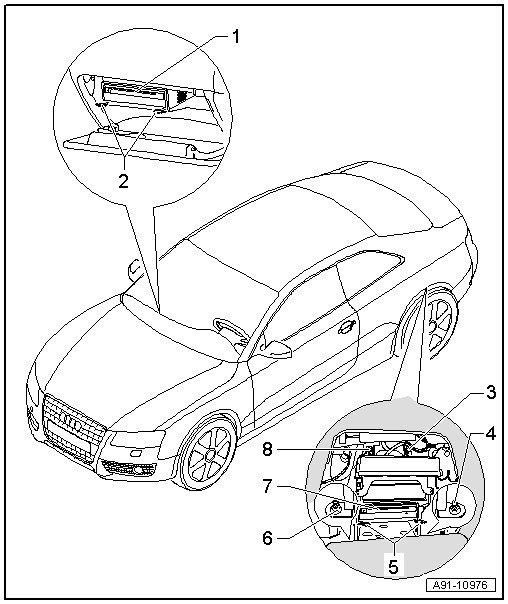

Fig 1: Navigation System Overview, Through 10.2008

Courtesy of AUDI OF AMERICA, LLC

1. Navigation System with CD Drive Control Module -J401-, MMI Basic Plus Navigation
   • Connector assignment, Navigation Basic Plus, refer to CONNECTOR ASSIGNMENT, NAVIGATION BASIC PLUS .
   • Removing and installing (basic plus), refer to Navigation System with CD Drive Control Module -J401-, REMOVING AND INSTALLING, BASIC PLUS .
2. Radio Removal Tool:T10057
3. Nut
   • 5 Nm
4. Nut
   • 5 Nm
5. Radio Removal Tool:T10057
6. Nut
   • 5 Nm
7. Navigation System with CD Drive Control Module -J401-, MMI
   • Connector Assignment (MMI through 10/27/2008), refer to NAVIGATION SYSTEM CONNECTOR ASSIGNMENT, MMI, THROUGH 10/27/2008 .
   • Removing and installing (MMI through 10/27/2008), refer to Navigation System with CD Drive Control Module -J401-, REMOVING AND INSTALLING, MMI, THROUGH 11/03/2008 .
8. Nut
   • 5 Nm
