Individual components of mounting

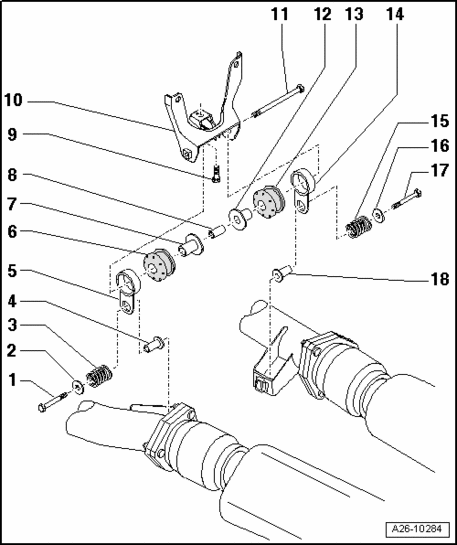

Fig 1: Exhaust System, Component Overview - Individual Components Of Mounting
GW00022362Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - 23 Nm

2 - Washer

3 - Spring

4 - Spacing sleeve

5 - Tab

6 - Buffer

7 - Spacing sleeve

8 - Sleeve

9 - 23 Nm

10 - Bracket

11 - 23 Nm

12 - Spacing sleeve

13 - Buffer

14 - Tab

15 - Spring

16 - Washer

17 - 23 Nm

18 - Spacing sleeve
