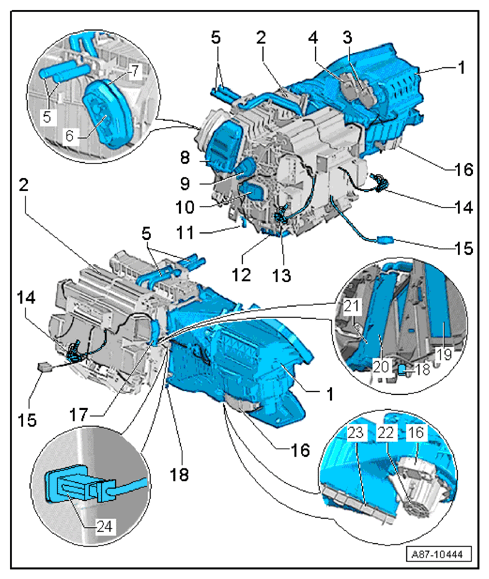

A/C Unit And Air Intake Housing Overview - Basic A/C System: Notes
- Air Intake Housing
- A/C With Evaporator
- Recirculation Door Motor -V113- → RECIRCULATION DOOR MOTOR
- Air Flow Door Motor -V71- → AIR FLOW DOOR MOTOR
- Coolant pipes to heater core
- Expansion valve
- Grommet
- Cover for the refrigerant pipes leading to the evaporator
- Defroster Door Motor -V107- → DEFROSTER DOOR MOTOR
- Footwell Door Motor -V261- → FOOTWELL DOOR MOTOR
- Flange for left condensate drain (driver side)
- Temperature Regulator Door Motor -V68- → TEMPERATURE REGULATOR DOOR MOTOR
- 13
- Footwell Outlet Temperature Sensor -G192- → FOOTWELL OUTLET TEMPERATURE SENSOR
- Installed In The Left Footwell Vent
- 14 - Center Outlet Temperature Sensor -G191- → CENTER OUTLET TEMPERATURE SENSOR
- 15 - Connection to the A/C control head climatronic control module -J255- on the A/C wiring harness
- 16 - Fresh Air Blower Control Module -J126-
- 17 - Center Vent Adjustment Motor -V102- → CENTER VENT ADJUSTMENT MOTOR
- 18 - Flange for right condensate drain (passenger side)
- 19 - Evaporator
- 20 - Heat exchanger for heater unit
- 21
- Auxiliary Air Heater Heating Element -Z35-/honeycomb
- The Auxiliary Air Heater Heating Element -Z35- Is Only Installed On Vehicles With A Diesel Engine
- Vehicles With Gas Engines Have A Honeycomb Installed As A Place Holder
- On Vehicles With A Diesel Engine And An Optional Parking Heater Installed As An Auxiliary Heater, There Is No Auxiliary Air Heater Heating Element -Z35- But Rather There Is A Honeycomb Installed (Introduction Open)
- 22 - Fresh air blower -V2-
- 23 - Dust and pollen filter
- 24 - Evaporator Vent Temperature Sensor -G263-
