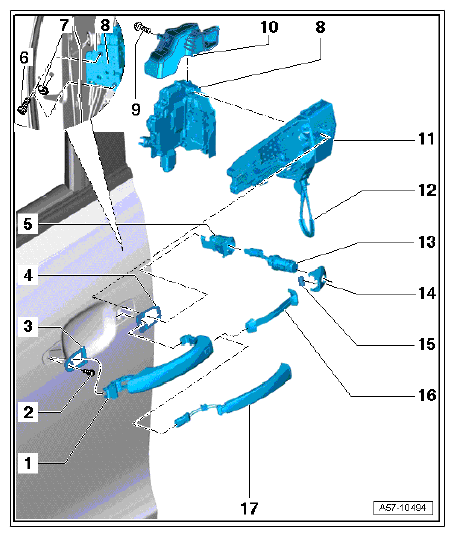

Front Door Lock Assembly Overview: Notes

Components A - B Are Not Shown In The Overview

1. A  - Driver Window Regulator Motor -V147- → FRONT WINDOW REGULATOR MOTOR
2. B  - Front Passenger Window Regulator Motor -V148- → FRONT WINDOW REGULATOR MOTOR
3. 1  - Door Handle
4. 8  - Door Lock

   Depending On The Equipment Level, The Following Components Are Integrated In The Front Driver And Passenger Door Lock:

   • Driver Door Contact Switch -F2-
   • Driver Door Central Locking Lock Unit -F220-
   • Driver Door Central Locking System Motor -V56-
   • Driver Door Central Locking (Safe) Motor -V161-
   • Driver Door Central Locking -SAFE- Function Actuator -F243-
   • Left Front Central Locking System Actuator -F131-
   • Driver Lock Cylinder Contact Switch -F241-
   • Front Passenger Door Contact Switch -F3-
   • Front Passenger Door Central Locking Lock Unit -F221-
   • Front Passenger Door Central Locking System Motor -V57-
   • Front Passenger Central Locking (Safe) Motor -V162-
   • Right Front Central Locking System Actuator -F133-
   • Front Passenger Door Central Locking -SAFE_ Function Actuator -F244-

   Component Location Is Similar For The Driver And Passenger Front Doors

5. 17  - Left Front Outside Door Handle Touch Sensor -G605- and Right Front Outside Door Handle Touch Sensor -G606-

Courtesy of AUDI OF AMERICA, LLC
