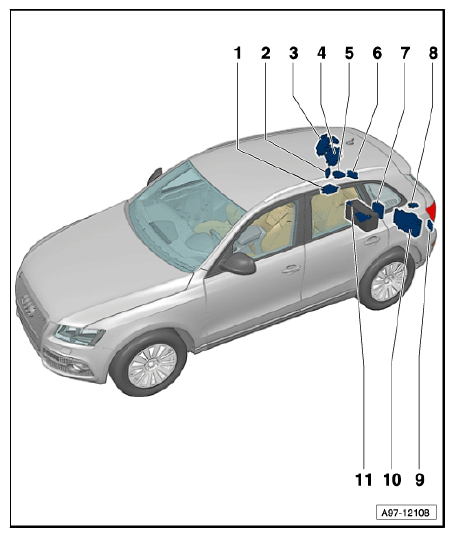

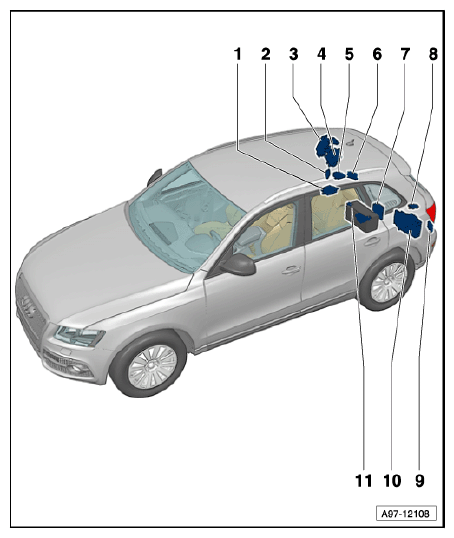

Control Modules In Rear Part Of Vehicle, Overview

1 - Voltage Stabilizer -J532-
- Component Location: → VOLTAGE STABILIZER -J532-
2 - Parallel Parking Assistance Control Module -J791-
- Component Location: In right luggage compartment, behind side panel trim
- Connectors → CONNECTORS ON PARALLEL PARKING ASSISTANCE CONTROL MODULE -J791-
3 - Towing Recognition Control Module -J345-
- Component Location: In right luggage compartment, behind side panel trim
- Connectors → CONNECTORS ON TOWING RECOGNITION CONTROL MODULE -J345-
3 - Electronic Damping Control Module -J250-
- Component Location: In right luggage compartment, behind side panel trim
- Connector → CONNECTOR ON ELECTRONIC DAMPING CONTROL MODULE -J250-
3-Amplifier for Telephone -R86-
- Component Location: In right luggage compartment, behind side panel trim
3 - Auxiliary Heater RF Receiver -R64-
- Component Location: In right luggage compartment, behind side panel trim
4 - Comfort System Central Control Module -J393-
- Component Location: In right luggage compartment, behind side panel trim
- Connectors → CONNECTORS ON COMFORT SYSTEM CENTRAL CONTROL MODULE -J393-
5 - Electro-Mechanical Parking Brake Control Module -J540-
- Component Location: In right luggage compartment, behind side panel trim
6 - Lane Change Assistance Control Module 2 -J770-
- Component Location: Inside rear bumper
7 - All-Wheel Drive Control Module -J492-
- Component Location: → ALL-WHEEL DRIVE CONTROL MODULE -J492-
8 - Engine Sound Generator Control Module -J943-
- Component Location: → ENGINE SOUND GENERATOR CONTROL MODULE -J943-
9 - Lane Change Assistance Control Module -J769-
- Component Location: Inside rear bumper
10 - Digital Sound System Control Module -J525-
- Component Location: In left luggage compartment, behind side panel trim
Courtesy of AUDI OF AMERICA, LLC
1. 10 - Radio -R- (K-Box)
  - Component Location: In left luggage compartment, behind side panel trim
2. 10 - Satellite Radio -R146-
  - Component Location: In left luggage compartment, behind side panel trim
3. 10 - Digital Radio -R147-
  - Component Location: In left luggage compartment, behind side panel trim
4. 10 - Navigation System Control Module with CD Drive -J401-
  - Component Location: In left luggage compartment, behind side panel trim
5. 10 - TV Tuner -R78-
  - Component Location: In left luggage compartment, behind side panel trim
6. 10 - Rear View Camera System Control Module -J772-
  - Component Location: In left luggage compartment, behind side panel trim
7. 11 - Battery Monitoring Control Module -J367-
  - Component Location and Pin Connector: → BATTERY MONITORING CONTROL MODULE -J367-

Courtesy of AUDI OF AMERICA, LLC
