Headlamp Range Control Module -J431-/Headlamp Range/Cornering Lamp Control Module -J745-

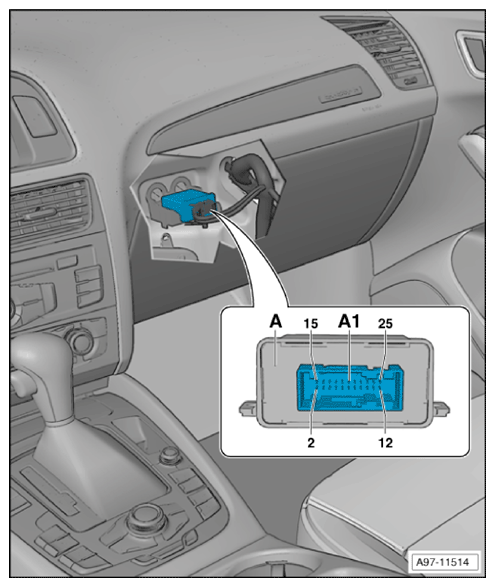

Component Location:

In Front Passenger's Footwell, Behind Glove Compartment

1. A  - Headlamp Range Control Module -J431-/Headlamp Range/Cornering Lamp Control Module -J745-

   Connector On Headlamp Range Control Module -J431-:

2. A1  - 26-Pin Connector -T26a-

   Connector On Headlamp Range/Cornering Lamp Control Module -J745-:

3. A1  - 26-Pin Connector -T26b-

Courtesy of AUDI OF AMERICA, LLC
