Right High-Intensity Gas Discharge Lamp Control Module -J344-, Through Model Year 2012

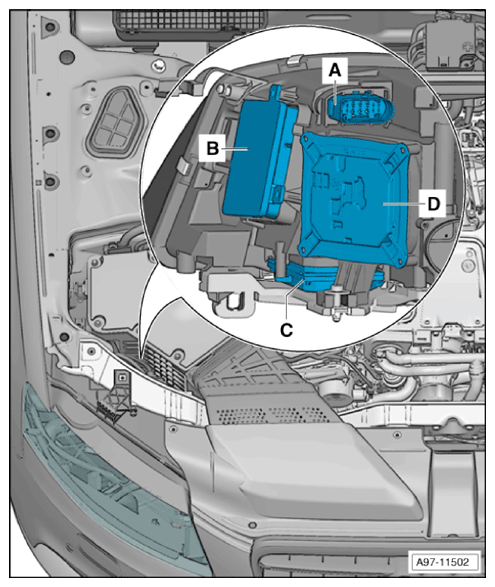

Component Location:

On Right Headlamp.

  1. 14-Pin Connector -T14b-
  2. Right High-intensity Gas Discharge Lamp Control Module -J344-
  3. Right Headlamp Power Output Stage -J668-
  4. Right LED Parking Lamp/DRL Module -L177-
G12766871Courtesy of AUDI OF AMERICA, LLC
