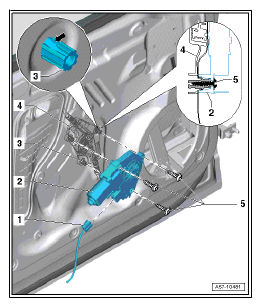

Front Window Regulator Motor

  1. Electrical Connection
  2. Driver Window Regulator Motor -V147- and Front Passenger

    Window Regulator Motor -V148-

G12779322Courtesy of AUDI OF AMERICA, LLC
