Vehicle Electrical System Control Module -J519-

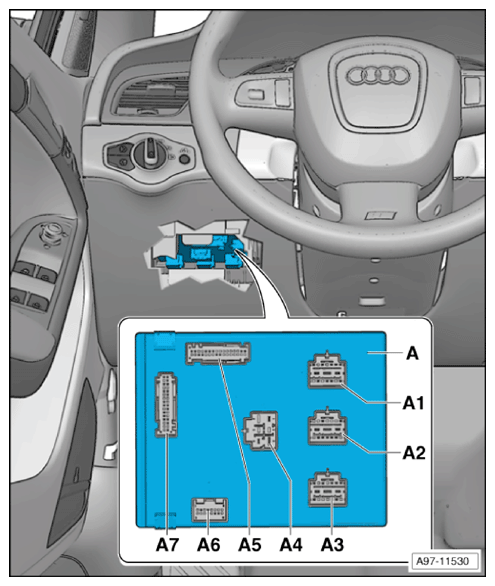

Component Location Vehicle Electrical System Control Module -J519- For Models With Left-Hand Drive:

Instrument Panel Driver's Side, Bottom.

1. A  - Vehicle Electrical System Control Module -J519-
2. A1  - 17-Pin Connector, black (Connector D) -T17l-
3. A2  - 17-Pin Connector, brown (Connector E) -T17m-
4. A3  - 17-Pin Connector, red (Connector F) -T17n-
5. A4  - 6-Pin Connector, green (Connector G) -T6f-
6. A5  - 32-Pin Connector, grey (Connector A) -T32a-
7. A6  - 16-Pin Connector, brown (Connector C) -T16b-
8. A7  - 32-Pin Connector, black (Connector B) -T32b-

Courtesy of AUDI OF AMERICA, LLC
