Transmission Control Module (TCM) -J217-/Direct Shift Gearbox (DSG) MECHATRONIC -J743-

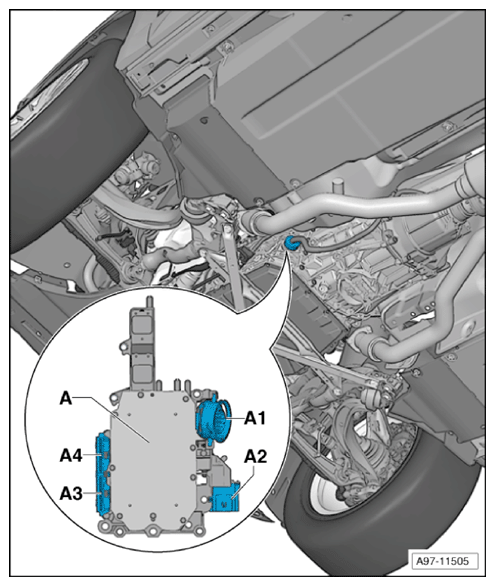

Component Location:

In Transmission Housing.

  1. A  - Transmission Control Module (TCM) -J217-/Direct Shift Gearbox (DSG) Mechatronic -J743-
  2. A1  - 16-Pin Connector -T16r-
  3. A2  - 8-Pin Connector -T8al-
  4. A3  - 14-Pin Connector -T14h-
  5. A4  - 14-Pin Connector -T14i-
G12766875Courtesy of AUDI OF AMERICA, LLC
