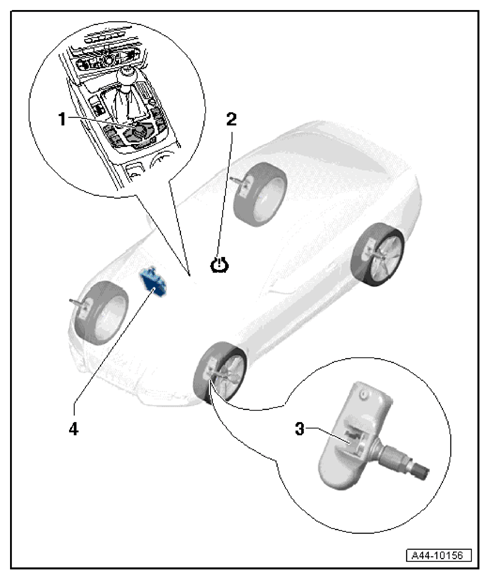

Tire Pressure Monitor Systems (TPMS) Overview, Up To 2010 My: Notes
- Multimedia Control Head -E380-
- Display in instrument cluster
- Left Front Tire Pressure Monitoring Sensor -G222-, Right Front Tire Pressure Monitoring Sensor -G223-, Left Rear Tire Pressure Monitoring Sensor -G224- and Right Rear Tire Pressure Monitoring Sensor -G225- → TIRE PRESSURE SENSOR
- Tire Pressure Monitoring Control Module -J502-
- Located in the right front footwell under the instrument panel
NOTE:
For 2010 MY Tire Pressure Monitoring Control Module -J502- Is Integrated Into ABS control module -J104-
