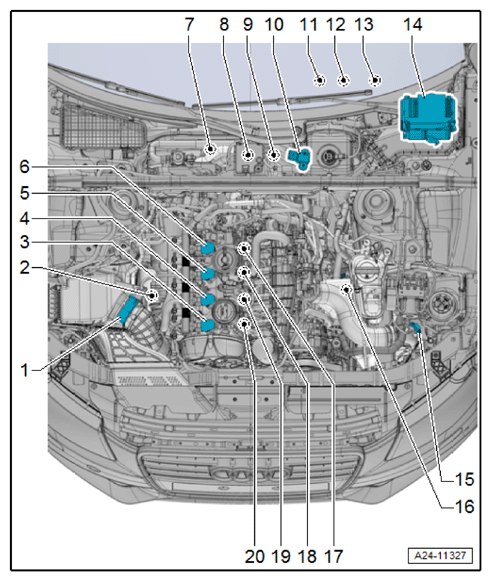

2.0L TFSI CAEB/CPMA/CPMB Engine Compartment: Notes
- Mass Airflow Sensor -G70-
- Right Electro-Hydraulic Engine Mount Solenoid Valve -N145-
- Optional based on production date.
- Ignition Coil 1 with Power Output Stage -N70-
- Ignition Coil 2 with Power Output Stage -N127-
- Ignition Coil 3 with Power Output Stage -N291-
- Ignition Coil 4 with Power Output Stage -N292-
- Transmission Neutral Position Sensor -G701- → LEFT ELECTROHYDRAULIC ENGINE MOUNT SOLENOID VALVE -N144-
- Optional based on production date and for vehicles with a manual transmission
- Transmission Coolant Valve -N488- → TRANSMISSION COOLANT VALVE -N488-
- For Vehicles With A Manual Transmission And Transmission Fluid Heater
- Transmission Range Gear Recognition Switch -F208- and Gear Recognition Sensor -G604-→ LEFT ELECTROHYDRAULIC ENGINE MOUNT SOLENOID VALVE -N144-
- Optional based on production date and for vehicles with a manual transmission
- Brake Booster Pressure Sensor -G294-
- Optional based on vehicle equipment
- Accelerator Pedal Position Sensor -G79-/Accelerator Pedal Position Sensor 2 -G185-→ FUEL PUMP CONTROL MODULE -J538-
- Brake Lamp Switch -F- → FUEL PUMP CONTROL MODULE -J538-
- Clutch Position Sensor -G476- → FUEL PUMP CONTROL MODULE -J538-
- Includes Clutch Pedal Switch -F36-/Clutch Pedal Starter Interlock Switch -F194-
- For vehicles with manual transmission
- Engine Control Module -J623-
- Charge Air Pressure Sensor -G31-
- Left Electrohydraulic Engine Mount Solenoid Valve -N144- → LEFT ELECTROHYDRAULIC ENGINE MOUNT SOLENOID VALVE -N144-
- Optional based on production date.
- Cylinder 4 Fuel Injector -N33-
- Cylinder 3 Fuel Injector -N32-
- Cylinder 2 Fuel Injector -N31-
- Cylinder 1 Fuel Injector -N30-
Top → COMP. LOC. ENGINE
