Can Data Interchange

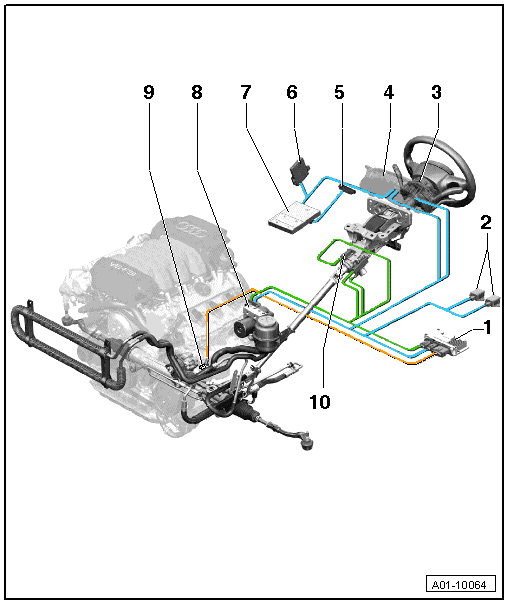

Fig 1: Dynamic Steering CAN Data Interchange
GWWA01-10064Courtesy of AUDI OF AMERICA, LLC
  1. Active Steering Control Module -J792-
  2. ESP Sensor Unit -G419-, ESP Sensor Unit 2 -G536-
  3. Steering Angle Sensor -G85-
  4. Instrument Cluster Control Module -J285-
  5. Driving Profile Selection Switch Module -E592-
  6. Data Bus on Board Diagnostic Interface -J533-
  7. Vehicle Electrical System Control Module -J519-
  8. ABS Control Module -J104-
  9. Power Steering Pump -V119-
  10. Steering Column for Dynamic Steering
