Steering Column For Dynamic Steering Component Description: Overview

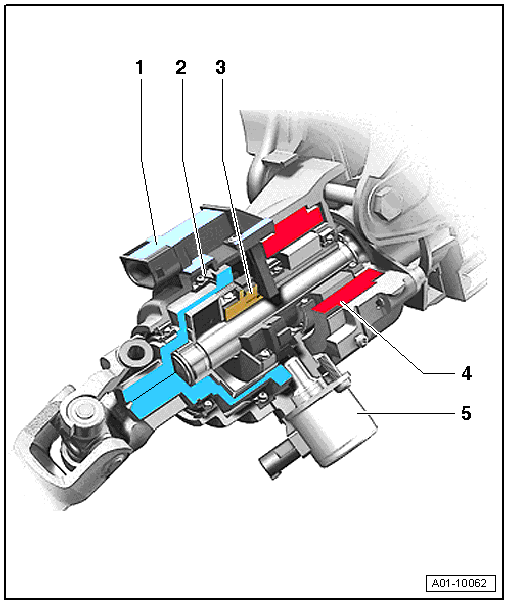

Fig 1: Overview Of Steering Column Dynamic Steering Components
GWWA01-10062Courtesy of AUDI OF AMERICA, LLC
  1. Connector
  2. Initialization Sensor
  3. Position Sensor
  4. Electric Motor
  5. Dynamic Steering Lock
