Component Location Active Steering Control Module -J792-: Notes

Component Location, Left-Hand Drive In Driver Footwell, Before Seat -1-.

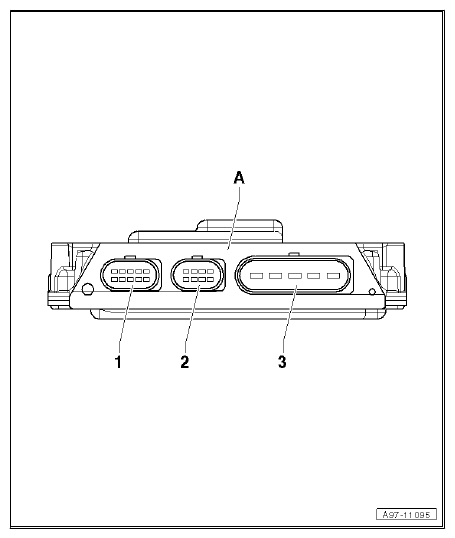

Pin Connectors

Courtesy of AUDI OF AMERICA, LLC

1. A  - Active Steering Control Module -J792-
2. 1  - 10-Pin Connector -T10I-, Black
3. 2  - 8-Pin Connector -T8D-, Black
4. 3  - 5-Pin Connector -T5F-, Black, Active Steering Motor -V477-

Courtesy of AUDI OF AMERICA, LLC
