Component Location Engine Control Module 2 -J624-: Notes

Component Location

In Plenum Chamber, Left -2-.

Pin Connectors

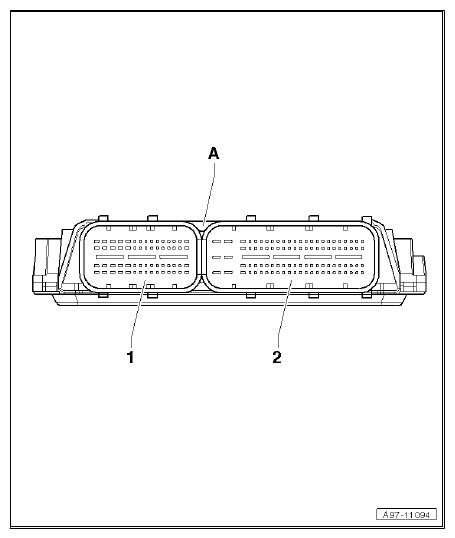

Engine Control Module (ECM) 2 -J624- With 154-Pin, Pin

Connector

Courtesy of AUDI OF AMERICA, LLC

1. A  - Engine Control Module (ECM) 2 -J624-
2. 1  - 60-Pin Connector -T60A-, Black
3. 2  - 94-Pin Connector -T94A-, Black

Courtesy of AUDI OF AMERICA, LLC
