Component Location Vehicle Electrical System Control Module -J519-: Notes

Component Location, Left-Hand Drive

Behind Driver's Instrument Panel -1-.

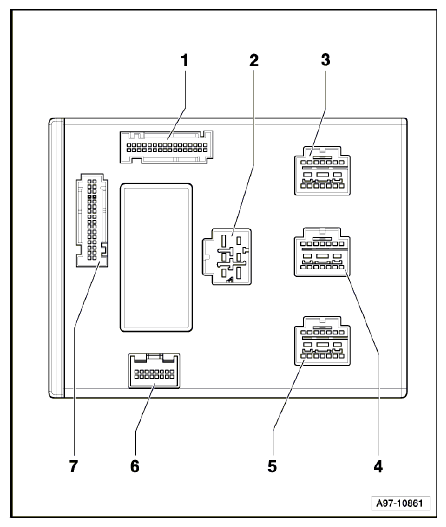

Pin Connectors

Courtesy of AUDI OF AMERICA, LLC

1. 32-Pin Connector -T32A-, Grey, Connector A
2. 6-Pin Connector -T6A-, Black, Connector G
3. 17-Pin Connector -T17B-, Black, Connector D
4. 17-Pin Connector -T17A-, Brown, Connector E
5. 17-Pin Connector -T17C-, Red, Connector F
6. 16-Pin Connector -T16C-, Brown, Connector C
7. 32-Pin Connector -T32B-, Black, Connector B

Courtesy of AUDI OF AMERICA, LLC

Back To Overview  → COMP. LOC. CONTROL MODULES VEHICLE FRONT  .

Component Location, Right-Hand Drive

Behind Driver's Instrument Panel -1-.

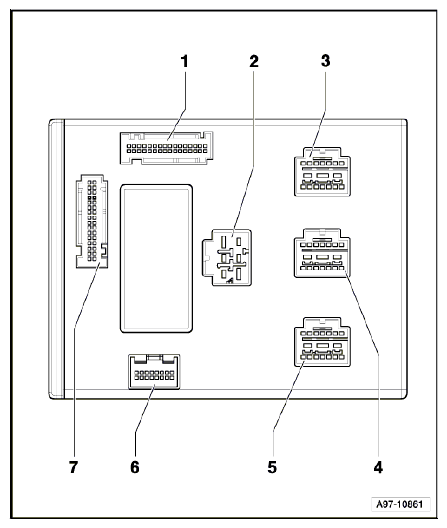

Pin Connectors

Courtesy of AUDI OF AMERICA, LLC

1. 32-Pin Connector -T32A-, Grey, Connector A
2. 6-Pin Connector -T6A-, Black, Connector G
3. 17-Pin Connector -T17B-, Black, Connector D
4. 17-Pin Connector -T17A-, Brown, Connector E
5. 17-Pin Connector -T17C-, Red, Connector F
6. 16-Pin Connector -T16C-, Brown, Connector C
7. 32-Pin Connector -T32B-, Black, Connector B

Courtesy of AUDI OF AMERICA, LLC
