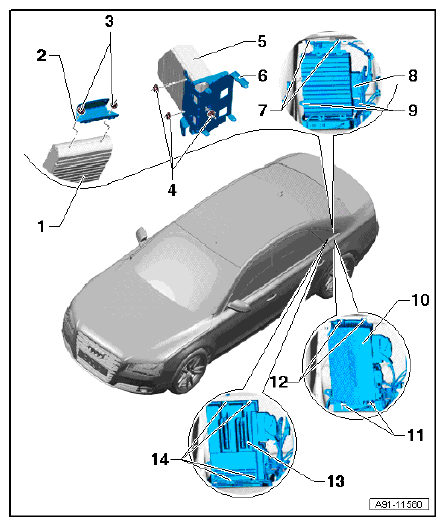

Sound System Control Module Overview

  1. Digital sound system control module 2 -J787- (Bang & Olufsen®)
  2. Bracket
  3. Nut
  4. Nut
  5. Digital sound system control module 2 -J787- (Bang & Olufsen®)
  6. Bracket
  7. Nut
  8. Digital sound system control module 2 -J787- (Bang & Olufsen®)
  9. Nut
  11. Screw
  12. Nut
  13. Digital sound system control module -J525- (Bang & Olufsen®)
  14. Screw
G12770701Courtesy of AUDI OF AMERICA, LLC
