Navigation System With Cd Drive Control Module, Harness Connectors

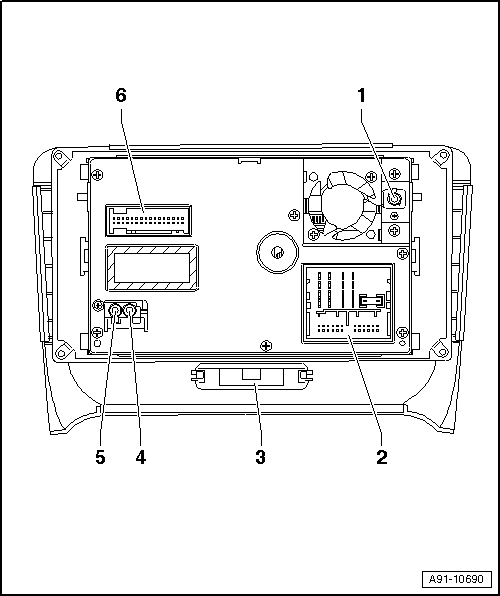

Fig 1: Identifying Navigation System With Cd Drive Control Module

Courtesy of AUDI OF AMERICA, LLC

GPS connection (blue) from Radio, Telephone, Navigation System Antenna -R52- Coupe
- GPS connection (blue) from Navigation System Antenna -R50- Roadster
Connection Block With Four Multi-Pin Connectors And A Fuse For Unit
Front Passenger's Airbag Disabled Indicator Lamp -K145-
IF Connection (White) To Antenna Amplifier 2 -R111- Coupe
- IF Connector (White) To The Antenna Selection Control Module -J515- Roadster
HF (white) Connection From Antenna Amplifier 2 -R111- Coupe
- HF Connector (White) From The Antenna Selection Control Module -J515- Roadster
32-pin Connector (T32b) From The External Audio Source Connection -R199-

NOTE:

Unlisted connector terminals are not assigned.

Fig 2: Multi-Pin Connector

Courtesy of AUDI OF AMERICA, LLC

2 - Right front speaker (+) (not used)

3 - Left front speaker (+) (not used)

6 - Right front speaker (-) (not used)

7 - Left front speaker (-) (not used)

Fig 3: Multi-Pin Connector

Courtesy of AUDI OF AMERICA, LLC

2 - Signal ground to CD changer/satellite radio

3 - Speed signal (not used)

4 - Permanent positive to CD changer

5 - K diagnostic (not used)

6 - Data out to the CD changer

7 - BOSE coding to ground (only with BOSE)

8 - Left signal from CD changer/satellite radio

9 - Right signal from CD changer/satellite radio

10 - Positive switched to CD changer

11 - Data in from the CD changer

12 - CLK from the CD changer

Fig 4: Multi-Pin Connector

Courtesy of AUDI OF AMERICA, LLC

2 - Signal from back-up light switch (not used)

3 - Left front signal to digital sound system control module

5 - Left rear signal to digital sound system control module

6 - LF (-) from telephone transceiver

8 - Signal ground to digital sound system control module

9 - Right front signal to digital sound system control module

11 - Right rear signal to digital sound system control module

12 - LF (+) from telephone transceiver

Fig 5: Multi-Pin Connector

Courtesy of AUDI OF AMERICA, LLC

9 - CAN-Bus High (Infotainment)

10 - CAN-Bus Low (Infotainment)

11 - NF mute from telephone transceiver

12 - Terminal 31

13 - Positive switched to digital sound system control module

14 - Anti-theft warning system (not used)

15 - Terminal 30

16 - Permanent positive (not used)

Fig 6: Black 32-Pin Multi-Pin Harness Connector (T32F)

Courtesy of AUDI OF AMERICA, LLC

6 - Right LF-IN from the external audio source connection

21 - LF-IN ground from the external audio source connection

22 - Left LF-IN from the external audio source connection
