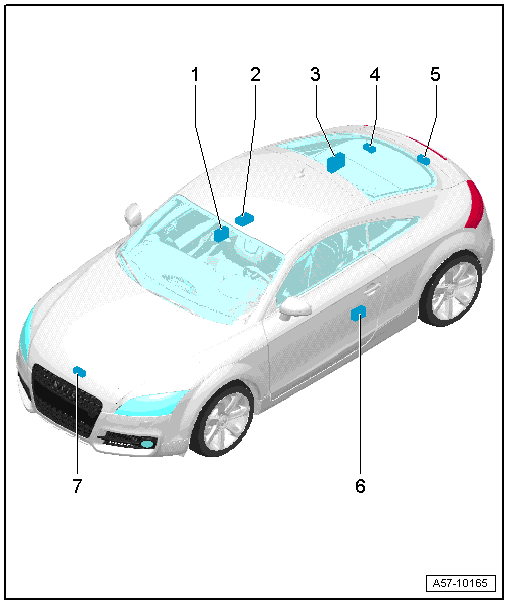

Central Locking Component Overview
NOTE:
Central locking functions electronically.
Actuators in doors are integrated in the door lock and have 2 motors.
Actuators cannot be replaced separately.
The first motor locks the door and the second motor locks the interior door mechanism (Safe function).
Now, doors also can no longer be opened from the interior.
After an accident in which the airbag deploys, the central locking system control module opens any doors which were locked.
The central locking control module is located inside the right rear side panel.
- Front passenger door control module -J387-
- Anti-Theft Alarm System Sensor -G578-
- Removing and Installing, refer to [For transmission(s) 02E] [For engine(s) CBRA, BPY, CETA, CCTA, CEPB, CDMA] Removal and Installation
- Comfort system central control module -J393-
- Removing and Installing, refer to [For transmission(s) 02E] [For engine(s) CBRA, BPY, CETA, CCTA, CEPB, CDMA] Removal and Installation
- Fuel filler door unlock motor -V155-
- Removing and Installing, refer to FUEL FILLER DOOR UNLOCK MOTOR V155
- Motor for rear lid release -V139-
- Driver door control module -J386-
- Engine hood contact switch -F266-
- Removing and Installing, refer to HOOD SWITCH F266
