Exhaust Door Control Unit With Reduction Catalytic Converter Assembly Overview: Notes

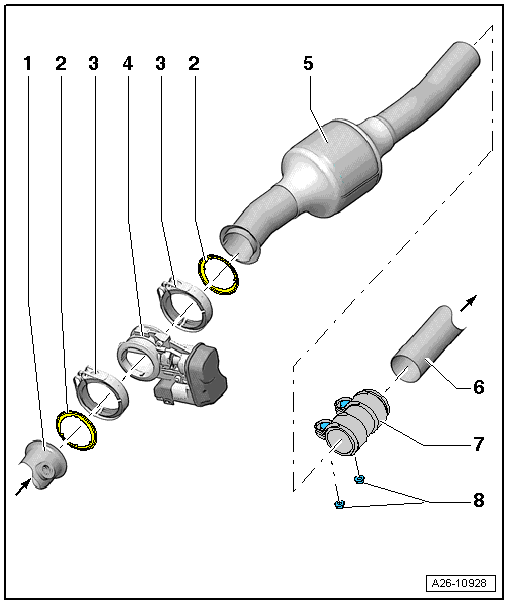

Fig 1: Exhaust Door Control Unit With Reduction Catalytic Converter Assembly Overview

Courtesy of AUDI OF AMERICA, LLC

1. NOx Reduction Catalytic Converter
   • Removing and installing, refer to NOx REDUCTION CATALYTIC CONVERTER
2. Gasket
   • Replace
   • Note installation position EXHAUST DOOR CONTROL UNIT WITH REDUCTION CATALYTIC CONVERTER ASSEMBLY OVERVIEW.
3. Clamp
   • Replace
   • 7 Nm
   • Installed location, refer to CLAMPS, INSTALLED POSITION ON EXHAUST SYSTEM
4. Exhaust Flap Control Module -J883-
   • Removing and installing, refer to EXHAUST FLAP CONTROL MODULE
5. Reduction Catalytic Converter
   • Removing and installing, refer to REDUCTION CATALYTIC CONVERTER
6. Center Muffler
   • Removing and installing, refer to CENTER MUFFLER ASSEMBLY OVERVIEW
7. Clamping Sleeve
   • Note installation position, refer to CLAMPS, INSTALLED POSITION ON EXHAUST SYSTEM
8. Nut
   • 23 Nm
