Exhaust Gas Temperature Sensor Installed Position

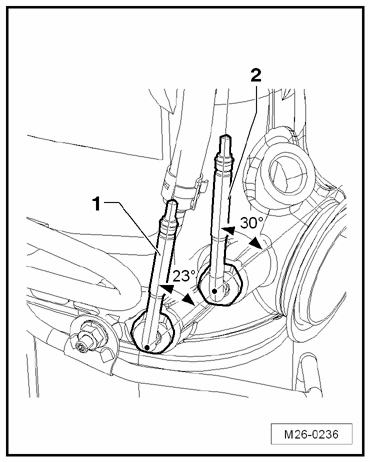

Fig 1: Exhaust Gas Temperature (EGT) Sensor Installed Position
GWWM26-0236Courtesy of AUDI OF AMERICA, LLC

-- Install the exhaust gas temperature sensor maintaining the angle:

  1. Exhaust gas temperature 3 -G495- : angle -23°-
  2. Exhaust gas temperature 2 -G448- : angle -30°-
