SUBFRAME Assembly Overview: Notes

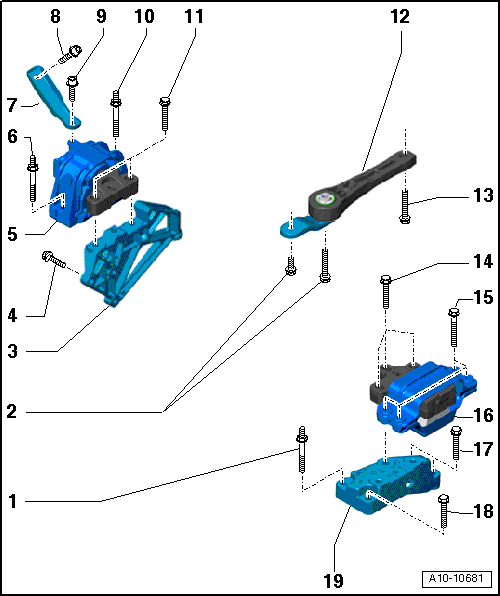

Fig 1: Subframe Assembly Overview
GWWA10-10681Courtesy of AUDI OF AMERICA, LLC
  1. Bolt
  2. Bolts
  3. Engine Support
    • Illustration does not correspond to version in vehicle
  4. Bolt
  5. Engine Mount
    • With support arm
  6. Bolt
    • Replace
    • 40 Nm plus an additional 90° turn
    • Engine mount to body
  7. Bracket
  8. Bolt
    • Replace
    • 20 Nm plus an additional 90° turn
    • Bracket to engine mount
  9. Bolt
    • Replace
    • 20 Nm plus an additional 90° turn
    • Bracket to body
  10. Bolt
    • Replace
    • 40 Nm plus an additional 90° turn
    • Engine mount to body
  11. Bolts
    • Replace
    • 60 Nm plus an additional 90° turn
    • Engine mount to engine support
  12. Pendulum Supports
  13. Bolt
  14. Bolt
  15. Bolt
  16. Transmission Mount
    • With support arm
  17. Bolt
  18. Bolt
  19. Transmission Support
