Battery Monitoring Control Module -J367-, Connector Views

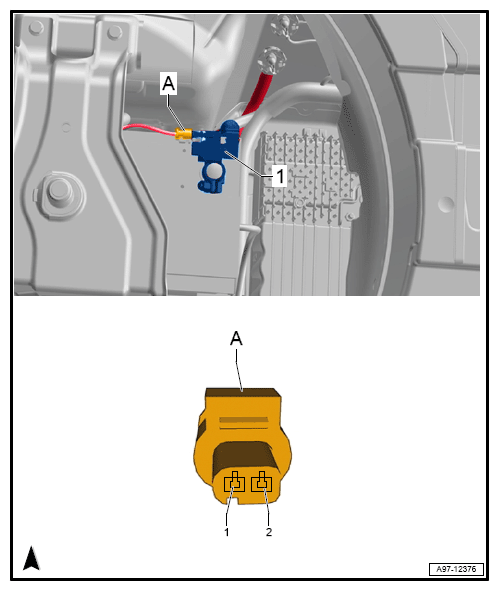

Double Connector -T2a-
 Courtesy of AUDI OF AMERICA, LLC
|
| T2a (A) |
Designation |
| 1 |
LIN-Bus
B710 LIN-Bus Connection 5 (in main wiring harness)
Data Bus On Board Diagnostic Interface J533 |
| 2 |
Connector B1, main fuse carrier on battery A
Terminal 30 |
