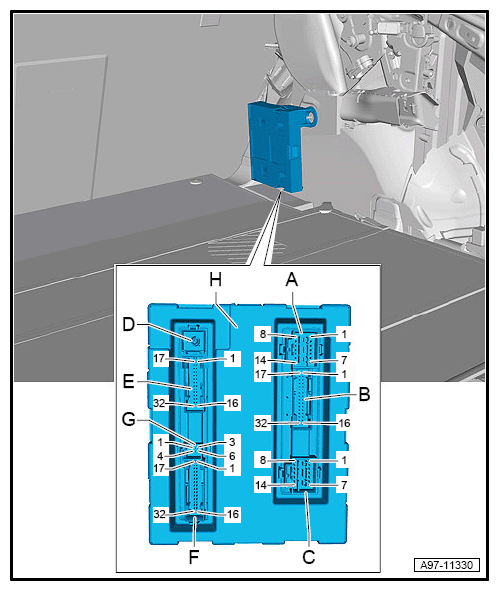

Comfort System Central Control Module J393
- 17-Pin Connector -T17s-, black
- 32-Pin Connector -T32i-, black
- 17-Pin Connector -T17r-, brown
- Double Connector -T2co-
- 32-Pin Connector -T32g-, grey
- 32-Pin Connector -T32h-, blue
- Not used
- Comfort System Central Control Module -J393-
 Courtesy of AUDI OF AMERICA, LLC
|
