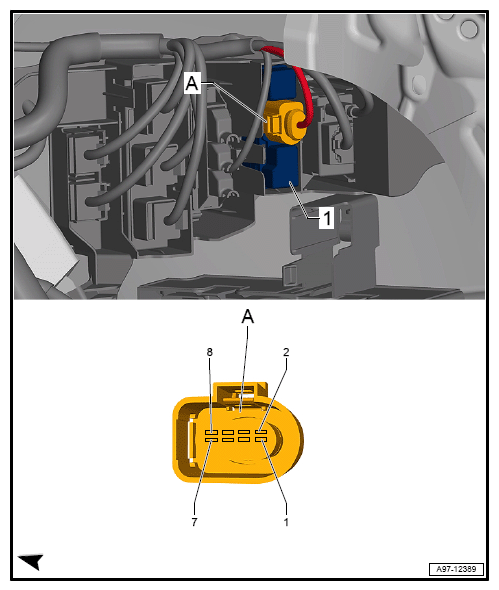

Engine Sound Generator Control Module -J943-, Connector Views
- 8-Pin Connector -T8ax-
| T8ax (A) | Designation |
|---|---|
| 1 | CAN-Bus powertrain, Low Wiring junction for powertrain CAN bus, Low TV37 |
| 2 | Terminal 31, to 387 Ground Connection 22 (in main wiring harness) 51 Ground Connection (in right luggage compartment) |
| 3 | CAN-Bus powertrain, High Wiring junction for powertrain CAN bus, High TV33 |
| 4 | Terminal 30, from Fuse Panel B SB |
| 5 | Engine sound generator actuator 1 R257 |
| 6 | Engine sound generator actuator 1 R257 |
| 7 | Engine sound generator actuator 2 R258 |
| 8 | Engine sound generator actuator 2 R258 |
