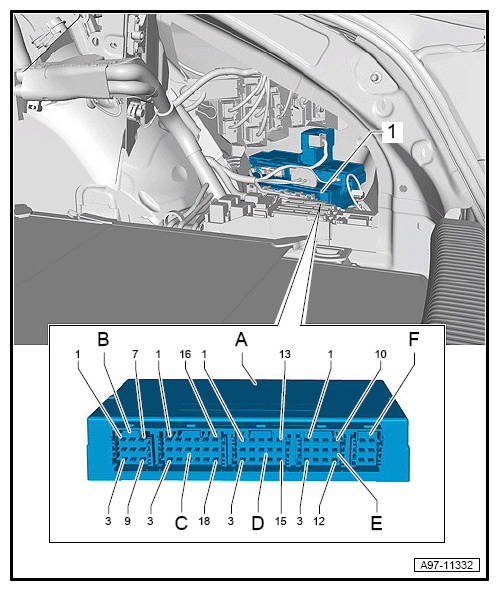

Level Control System Control Module -J197-, Location

  1. Level Control System Control Module -J197-
  2. 9-Pin Connector -T9a-, grey
  3. 18-Pin Connector -T18a-, grey
  4. 15-Pin Connector -T15a-, purple
  5. 12-Pin Connector -T12r-, green
  6. 6-Pin Connector -T6w-, blue
G12768222Courtesy of AUDI OF AMERICA, LLC
