Camera Control Module -J852-, Connector Views

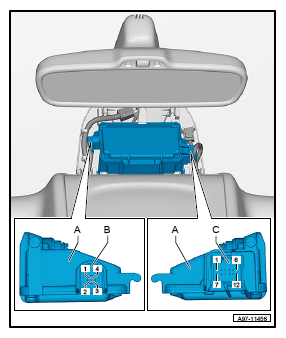

  1. 5-Pin Connector -T5c-/12-Pin Connector -T12a-
    1. B - 5-Pin Connector -T5c-, black
    2. C - 12-Pin Connector -T12a-, black
G12770049Courtesy of AUDI OF AMERICA, LLC
