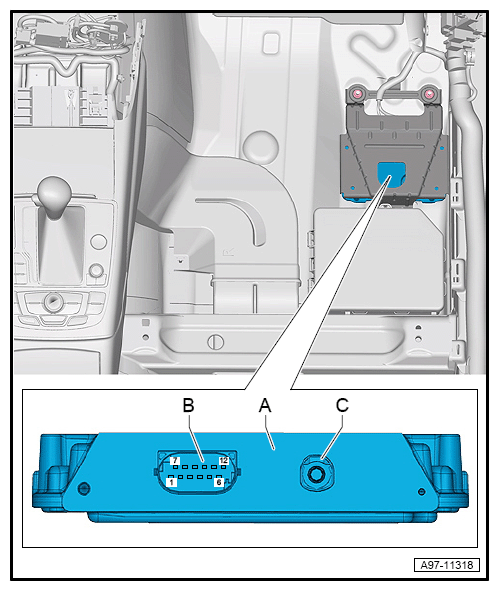

Image Processing Control Module -J851-, Connector Views, LHD

12-Pin Connector -T12i-/5-Pin Connector -T5i-

  1. B - 12-Pin Connector -T12i-, black
  2. C - 5-Pin Connector -T5i-, black
G12768088Courtesy of AUDI OF AMERICA, LLC
